TK1 Safety Helmet Recorder 4G Full Network Connectivity 4000mAh Large Battery 16-Hour Long Battery Life Real-Time Positioning Multiple Warning Functions
6Low stock
6In stock, ready to ship
Innovative Technology
User-Friendly Design
Reliable Performance
Couldn't load pickup availability
Description
Product functions

█ 4G ANDROID SMART SYSTEM
This system allows users to enjoy fast and stable internet access, supporting various applications and services. It provides a smooth experience for streaming, gaming, and browsing, ensuring that users stay connected without interruptions. The smart system is designed to be intuitive, making it easy for users to navigate and customize settings according to their preferences. Additionally, it offers enhanced security features to protect user data and privacy.
█ CERTIFIED TO GB STANDARDS
The certification ensures that the product meets the stringent quality and safety requirements set by national standards. This not only guarantees reliability but also enhances user trust in the product's performance and durability. With this certification, users can be confident that the device has undergone rigorous testing and adheres to industry benchmarks.We can also prepare relevant test reports in accordance with the standards of different countries for corresponding customers.
█ 4000mAh battery
This high-capacity battery ensures extended usage without frequent recharging, making it ideal for both short outings and long trips. The battery's efficient energy distribution system supports all core functions of the device, maintaining optimal performance levels throughout the day. Additionally, the integrated power management technology helps conserve energy during standby periods, further enhancing the overall battery life. Users can rely on this power source to keep their device operational even under demanding conditions.It can last for 16 hours.
█ SUPPORT BRIGHTNESS ADJUSTMENT BY WAVING HANDS
This feature allows users to easily adjust the screen brightness without touching the device, providing a more convenient and hygienic way to interact with the system. The hand-waving function is particularly useful in environments where maintaining cleanliness is crucial, such as medical settings or during outdoor activities. Additionally, this innovative approach to brightness control ensures that users can quickly adapt the display to suit different lighting conditions, enhancing both visibility and energy efficiency. The sensitivity of the hand-waving mechanism has been carefully calibrated to prevent accidental adjustments while still being responsive enough for seamless operation.
█ HAT-OFF ALRAM
This feature is designed to enhance safety by alerting users when they unintentionally leave their helmet behind. The alarm system is equipped with a smart sensor that detects the separation between the helmet and the user, triggering an audible warning within seconds. Its intelligent design ensures minimal false alarms, providing reliable performance in various scenarios.
█ IP68 DUAL-COLOR MOLD WATERPROOF
This equipment utilizes advanced dual-color molding technology and IP68-rated waterproof design, achieving comprehensive protection against dust and water through precision structural sealing and multi-layered shielding. The housing is formed in one injection molding process using two distinct color materials, creating a sleek dual-color aesthetic while forming natural sealing barriers at color junctions that significantly enhance waterproof performance. Rigorous testing confirms the device can withstand 30 minutes of continuous immersion in 1.5-meter-deep room-temperature still water without damage, while completely preventing dust particles larger than 75 microns from entering internal components. This ensures stable operation in dusty construction sites, humid bathrooms, or rainy outdoor environments. Critical internal components like the motherboard and battery interface are additionally coated with nano waterproofing technology, further strengthening moisture resistance. Even accidental splashes, brief water exposure, or sand intrusion can be effectively prevented from causing short circuits, dramatically extending equipment lifespan and environmental adaptability.
█ FALL ALARM
When the device detects a sudden drop or fall, it immediately triggers an alert. This feature is especially useful for individuals working in high-risk environments or engaging in outdoor activities where accidental falls may occur. The alarm can notify designated contacts or emergency services, ensuring timely assistance and enhancing user safety.
█ GPS REAL-TIME POSITIONING
This function enables the device to provide accurate real-time location information. It can quickly and precisely determine the current position, whether in urban areas with dense buildings or in remote outdoor environments. With GPS real-time positioning, users can easily track the movement trajectory, set safe zones, and receive alerts when the device enters or exits specific areas. This is extremely useful for personal safety,
█ DANGEROUS RESCUE
In critical situations, this feature can be a lifesaver. When the device detects an emergency, it automatically sends out distress signals along with the user's precise location to pre-set contacts or monitoring centers. This function is particularly vital for individuals working in high-risk environments or engaging in adventurous outdoor activities. The system ensures that help can be dispatched promptly, significantly reducing response time during emergencies. Additionally, users can manually trigger the rescue alert if they find themselves in danger, providing an extra layer of security and peace of mind.
█ ELECTRICAL FENCE
The electrical fence feature provides an additional safeguard by creating a virtual boundary that can be customized according to specific needs. When the device detects that the user has crossed this predefined boundary, it automatically sends out a notification or alert to the designated contacts or monitoring center. This function is especially useful for keeping track of elderly individuals or children who might wander off unintentionally. Moreover, it can be utilized in professional settings where workers need to stay within certain areas for safety compliance. The system allows for flexible adjustments, enabling users to set multiple boundaries or modify existing ones easily through the accompanying mobile application. This ensures that both personal and professional safety requirements are met with precision and reliability.
█ TRAJETORY REPLAY
This feature allows users to review and analyze the historical path taken by the device wearer. By accessing the stored data, supervisors or family members can gain insights into movement patterns, ensuring that the individual stayed within designated safe zones. The replay function provides a visual representation of the trajectory on a map, offering both detailed and overview perspectives for better monitoring and decision-making.
█ VITAL SIGNS
The device is equipped with advanced sensors to monitor essential health metrics such as heart rate, blood pressure, and body temperature. These readings are updated in real-time, providing users and caregivers with accurate and timely information. Alerts can be configured to notify designated contacts if any of the vital signs exceed predefined thresholds, ensuring rapid response in critical situations. The data collected is stored securely and can be accessed through an intuitive interface for further analysis by medical professionals. This feature enhances the ability to track overall well-being and supports proactive health management.
█ GAS DETECTION
The device is equipped with advanced sensors capable of identifying various types of harmful gases, such as carbon monoxide, methane, and hydrogen sulfide. These sensors provide real-time monitoring and deliver accurate readings to ensure safety in potentially hazardous environments. Users can view gas concentration levels directly on the device or through a connected mobile application, which offers customizable alerts for different gas thresholds. The detection system is designed to operate efficiently even in challenging conditions, maintaining reliability and precision at all times.
█ CLIMBING WARNING
The climbing warning feature is engineered to alert users when they ascend or descend beyond predefined height thresholds. This functionality is particularly useful in environments where working at heights poses potential risks. The system utilizes advanced sensors to monitor altitude changes and triggers an alarm if the user exceeds safe limits. Customizable settings allow for personalized alerts based on specific job requirements or safety regulations. The warning mechanism operates independently of other safety features, ensuring comprehensive protection even in complex work scenarios. Real-time notifications are delivered both through audible alarms on the device and via the connected mobile application.

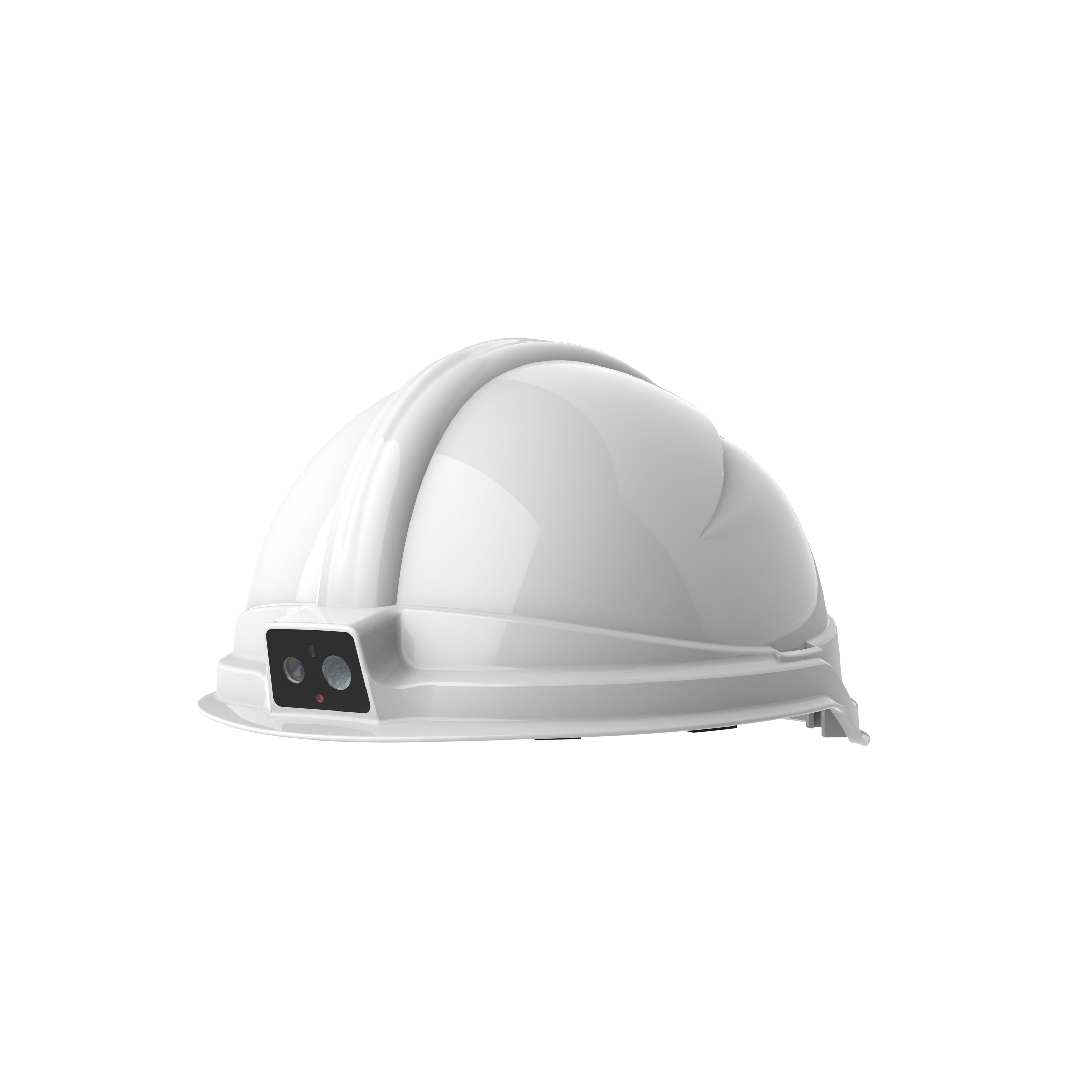

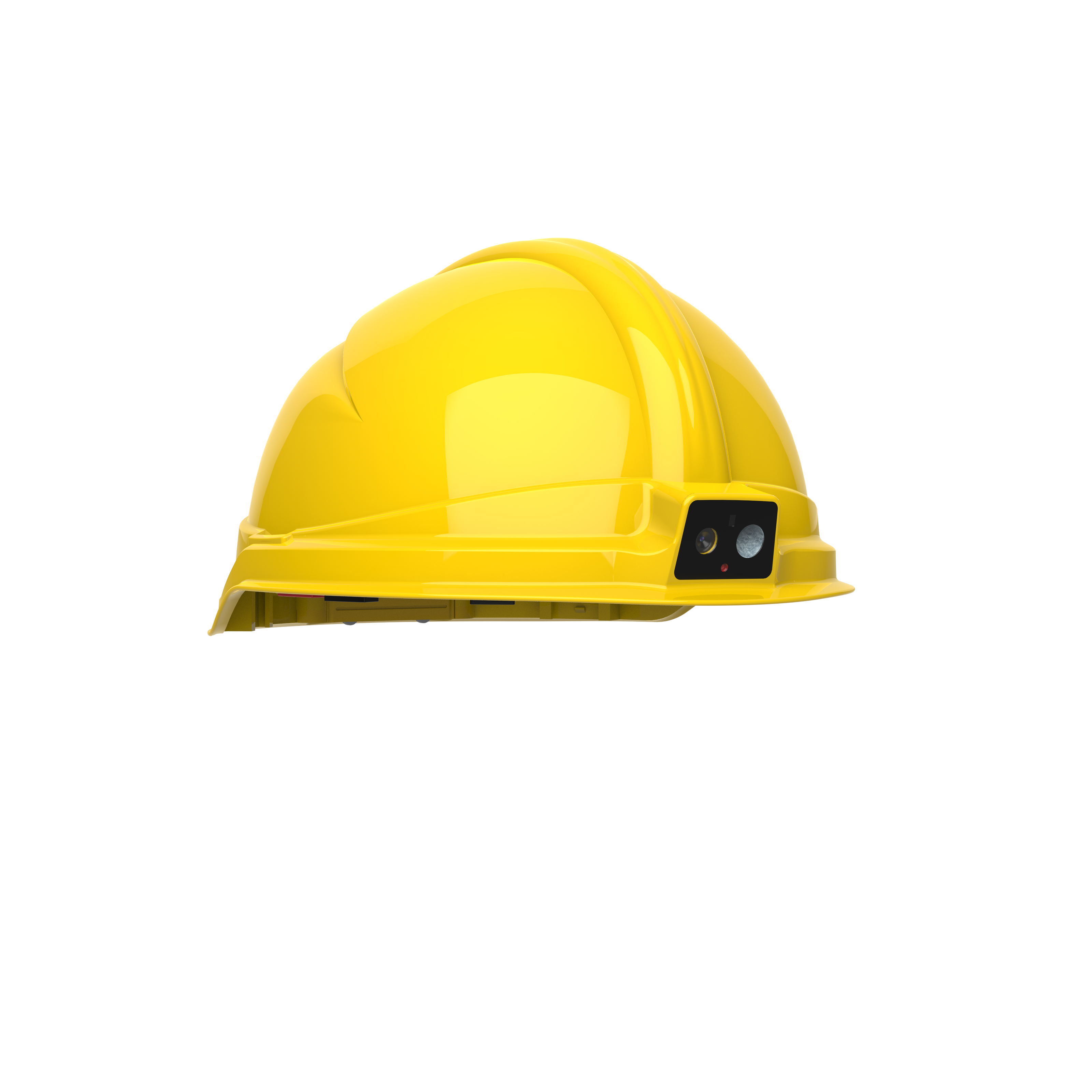

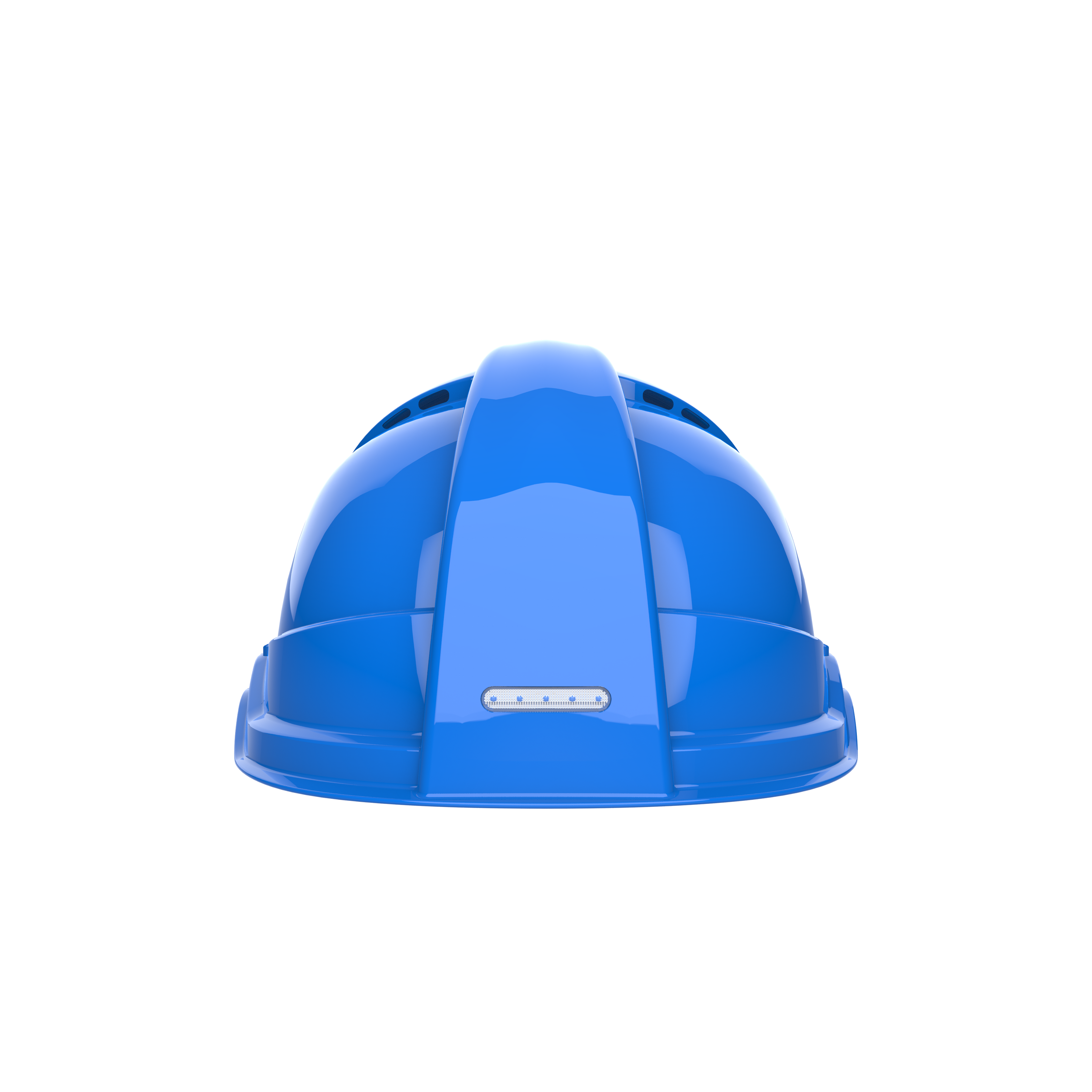

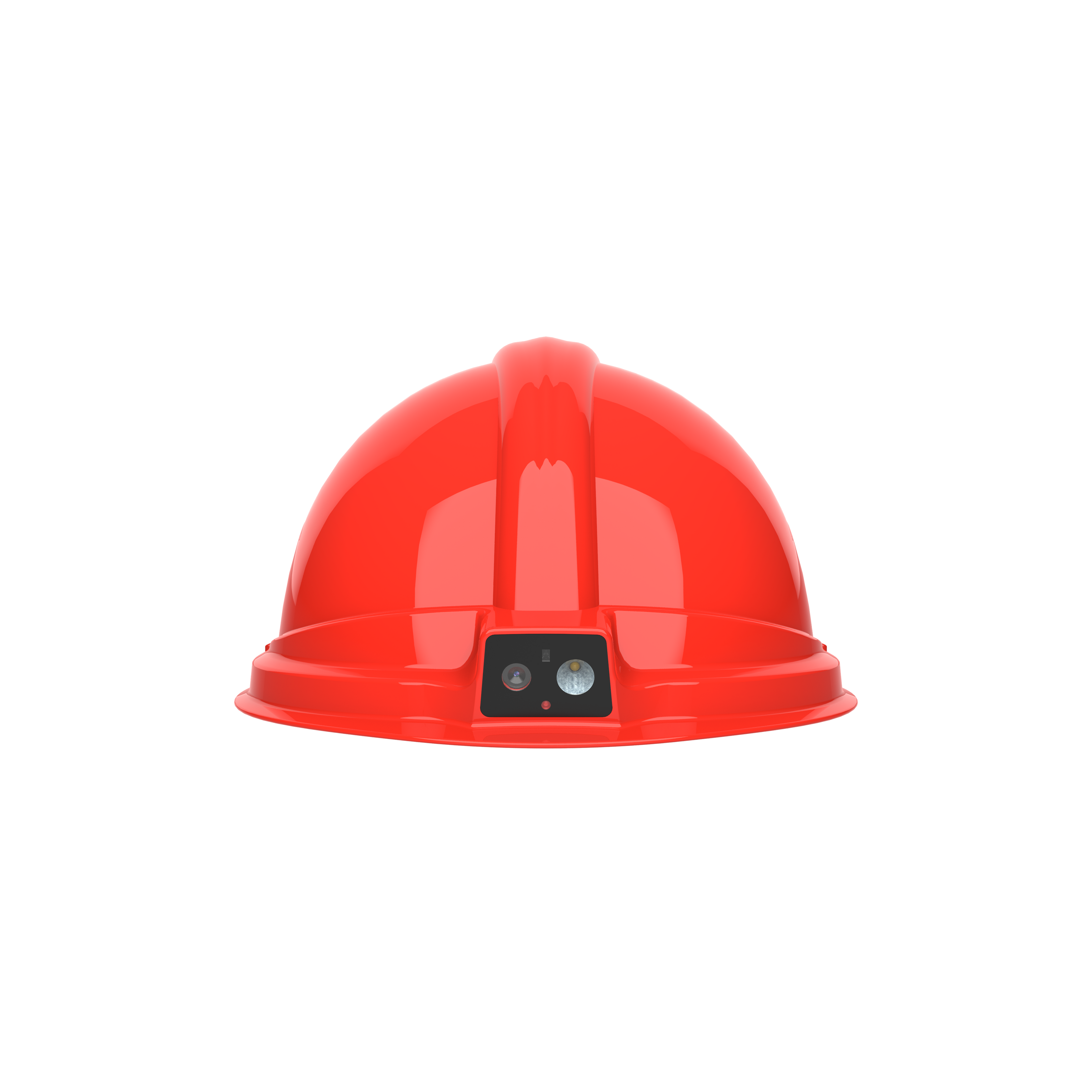

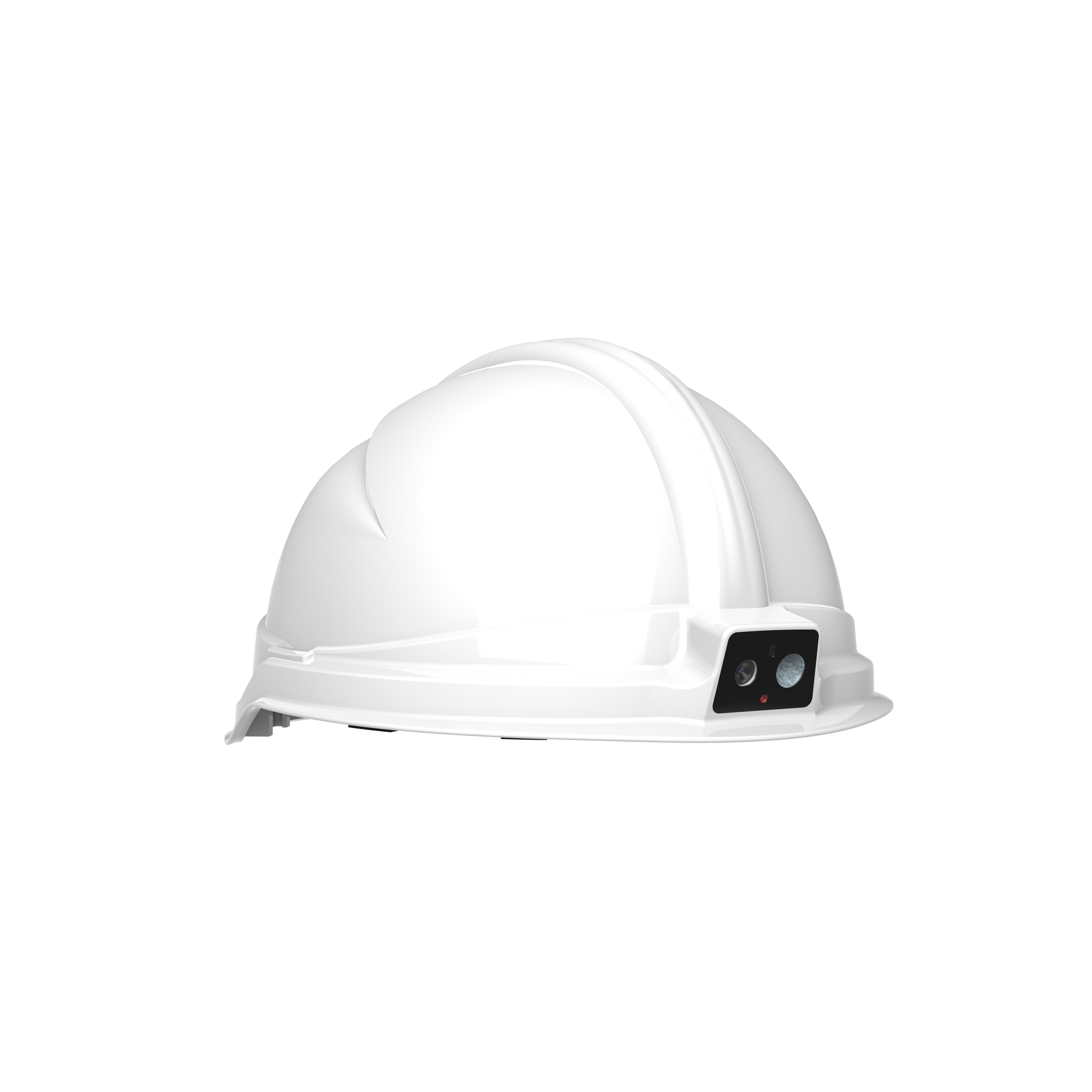

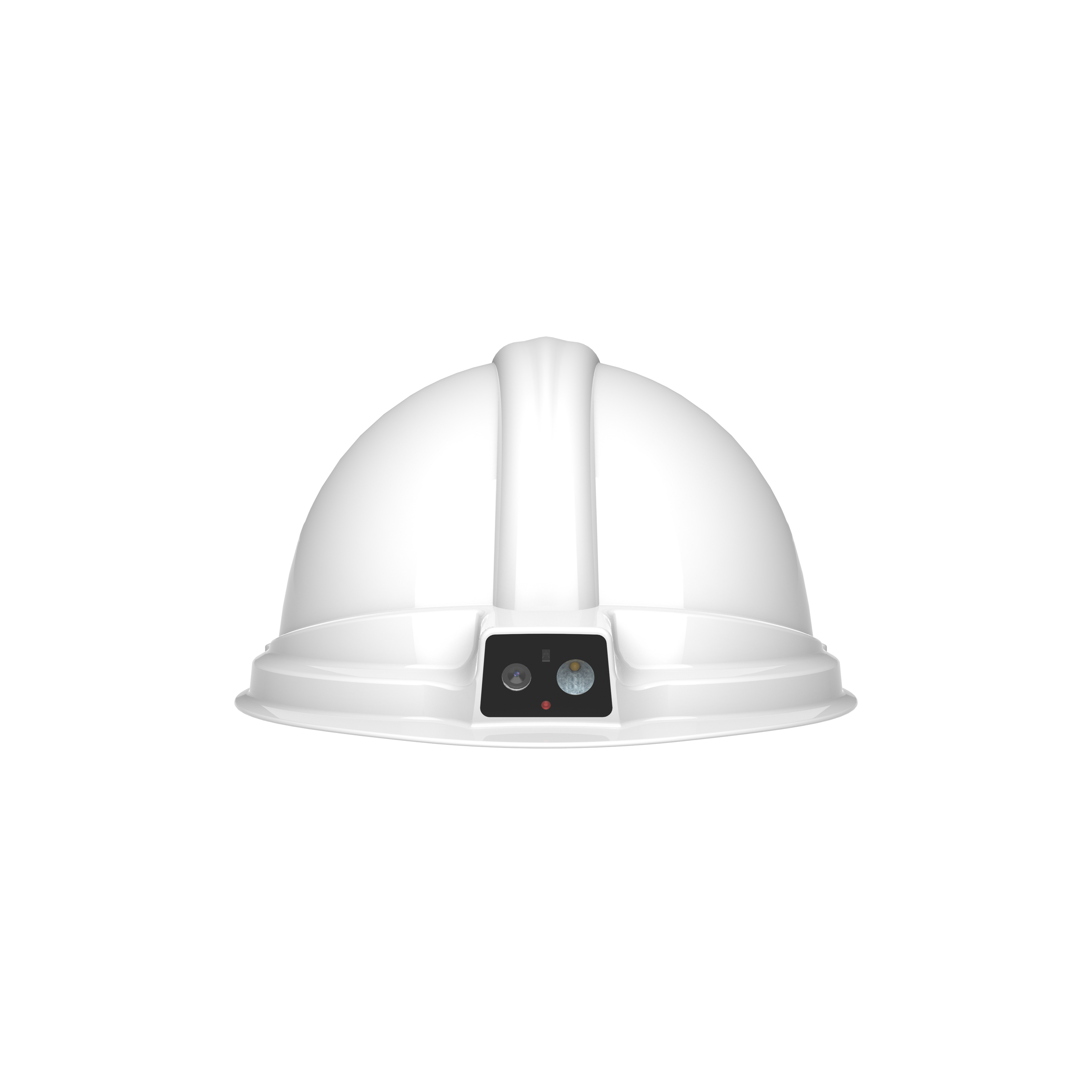

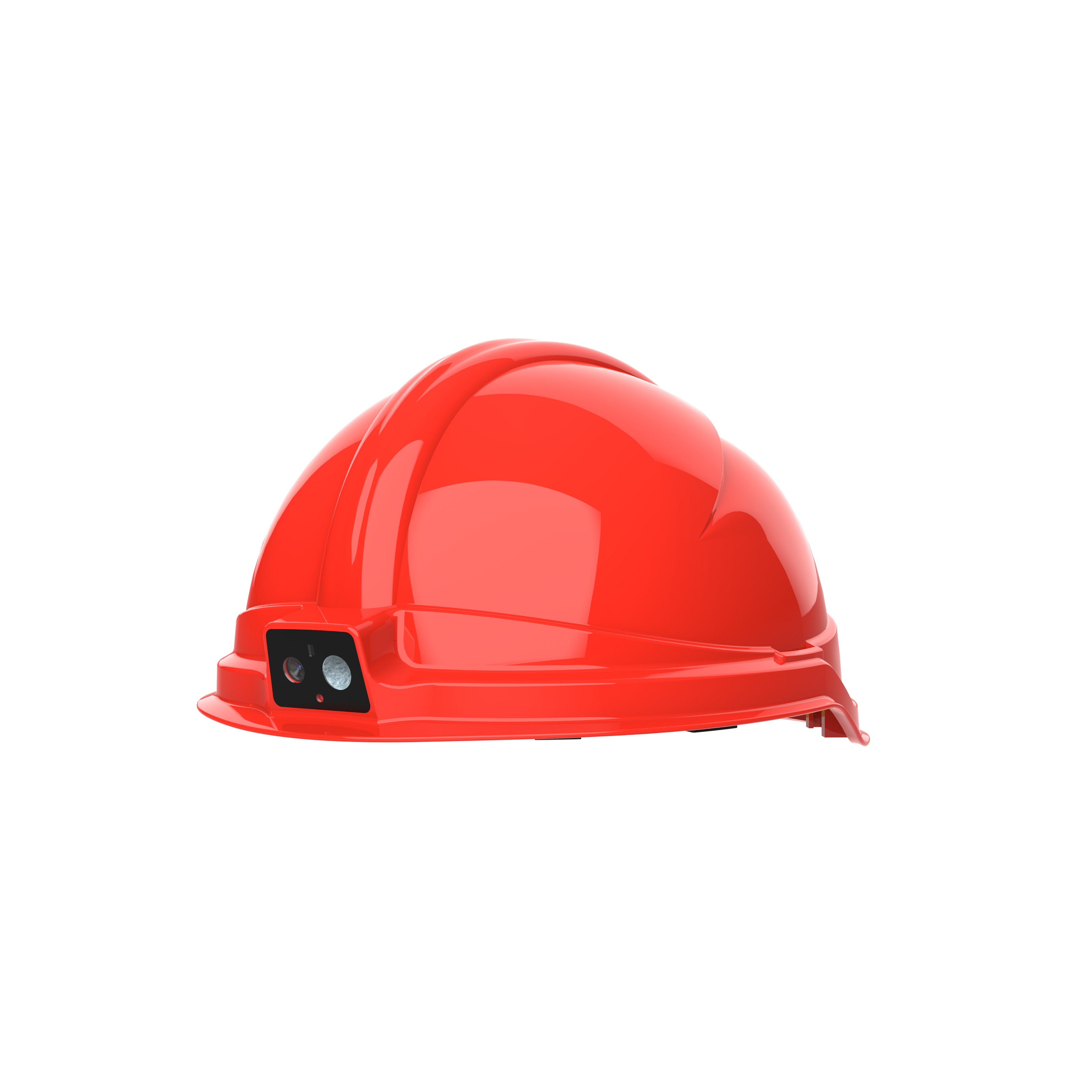

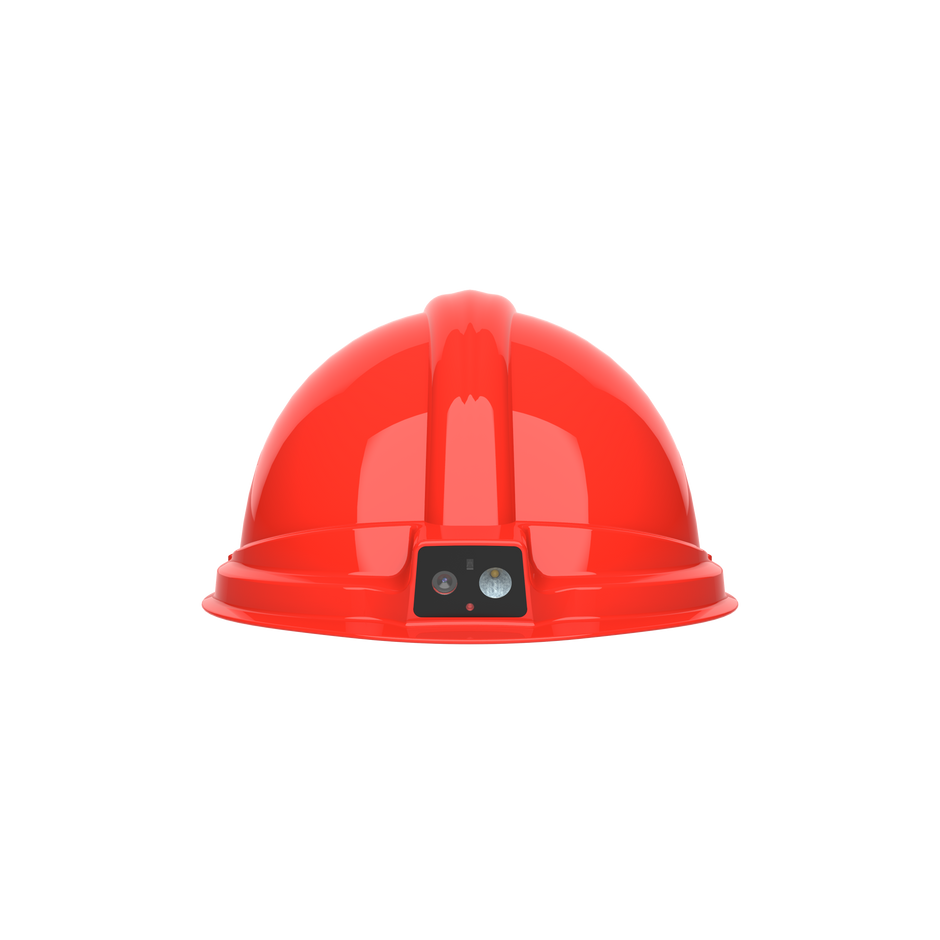

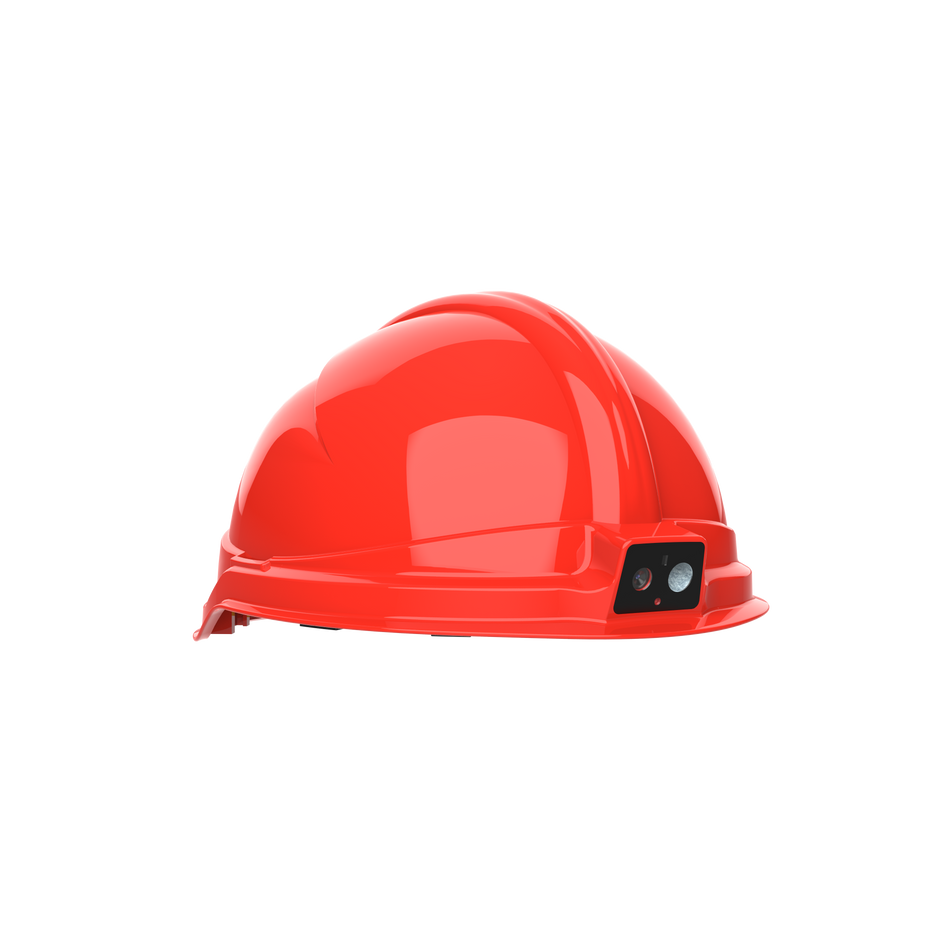

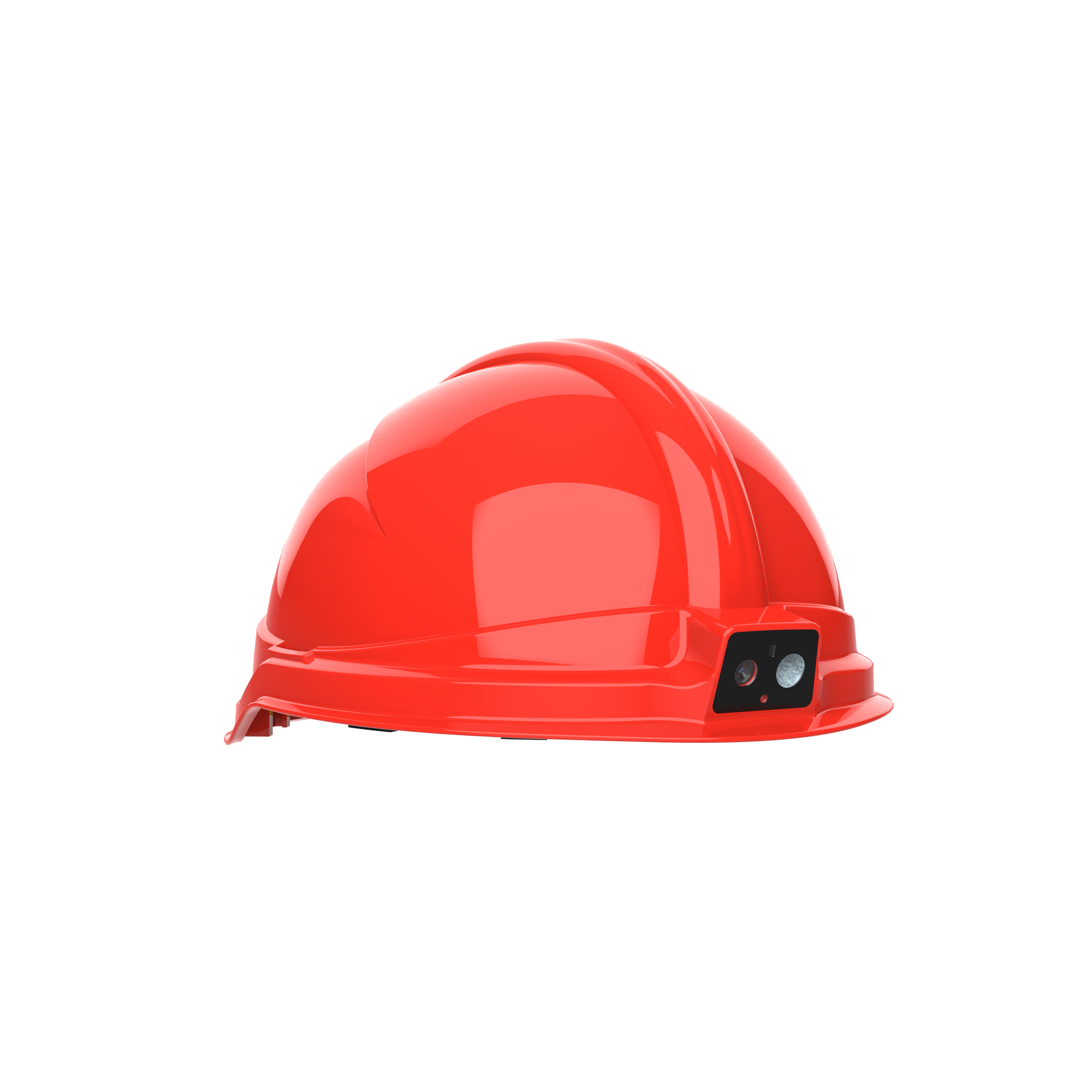

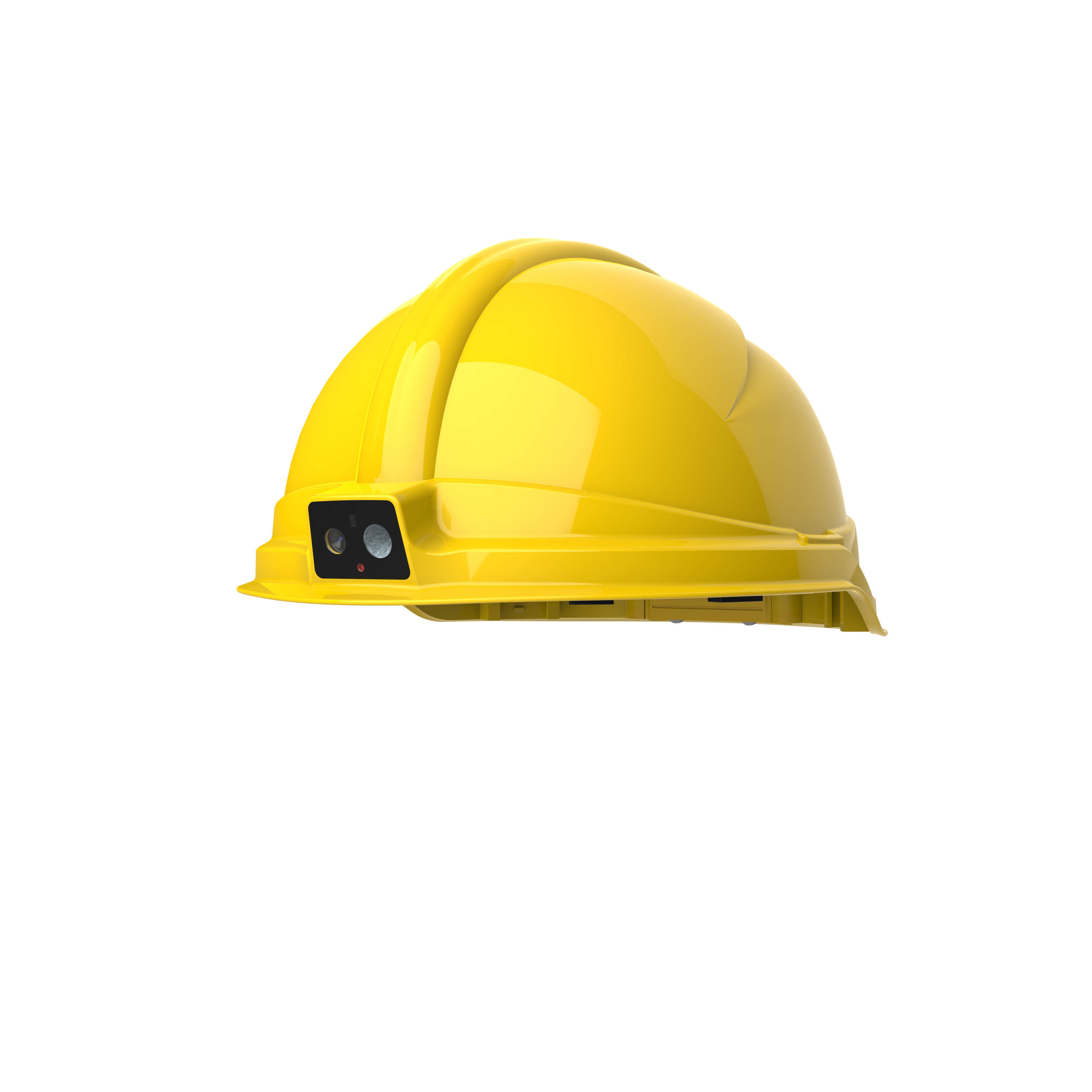

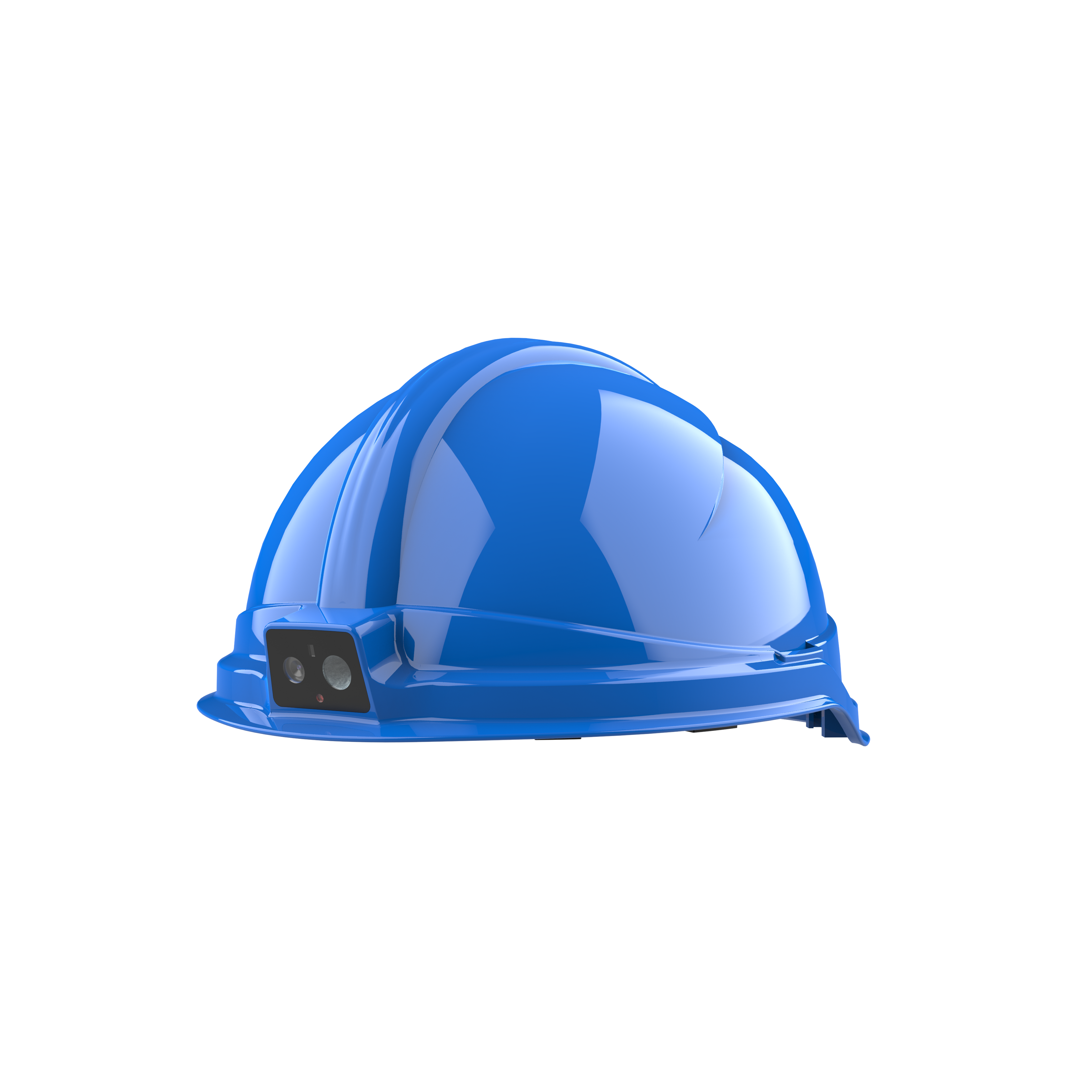

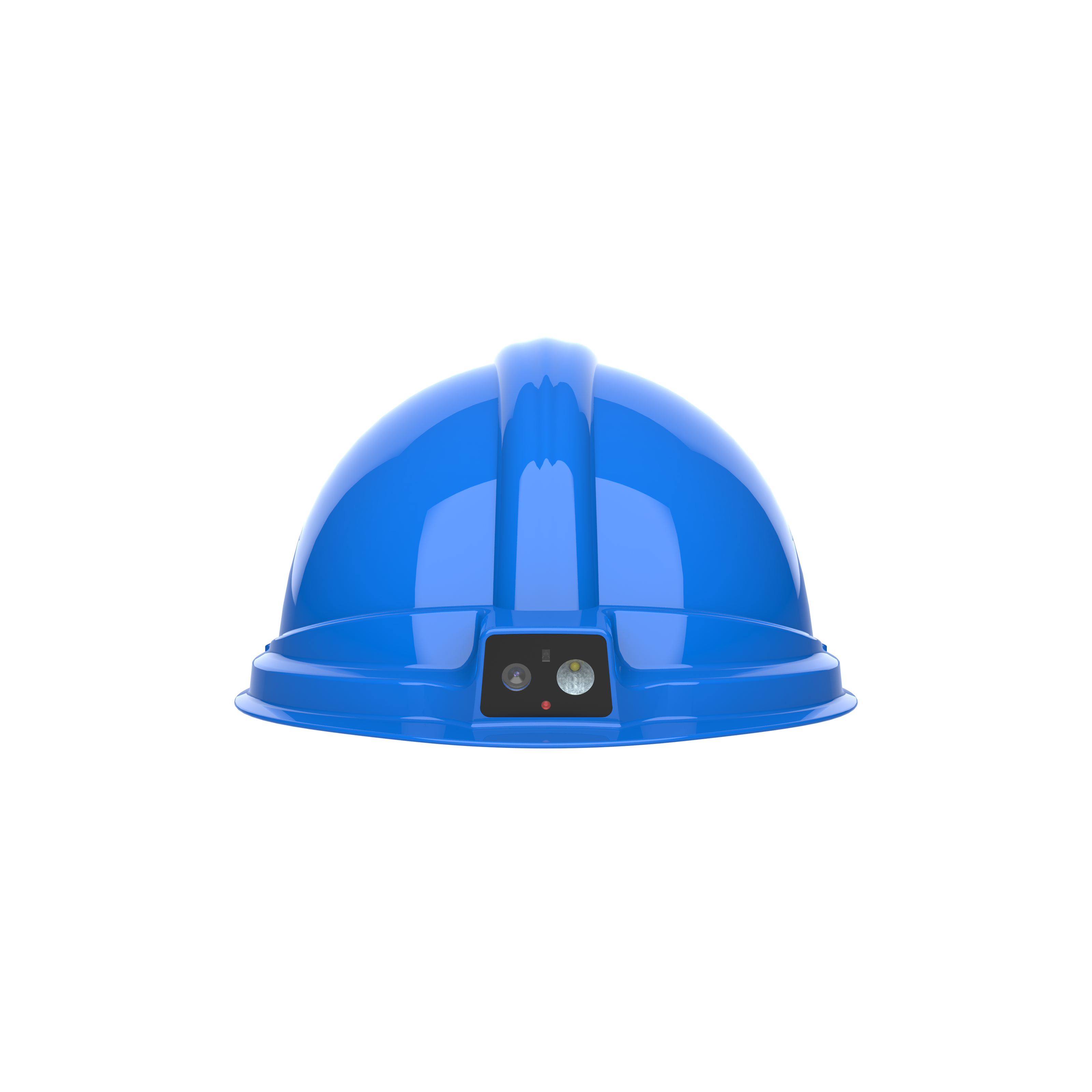

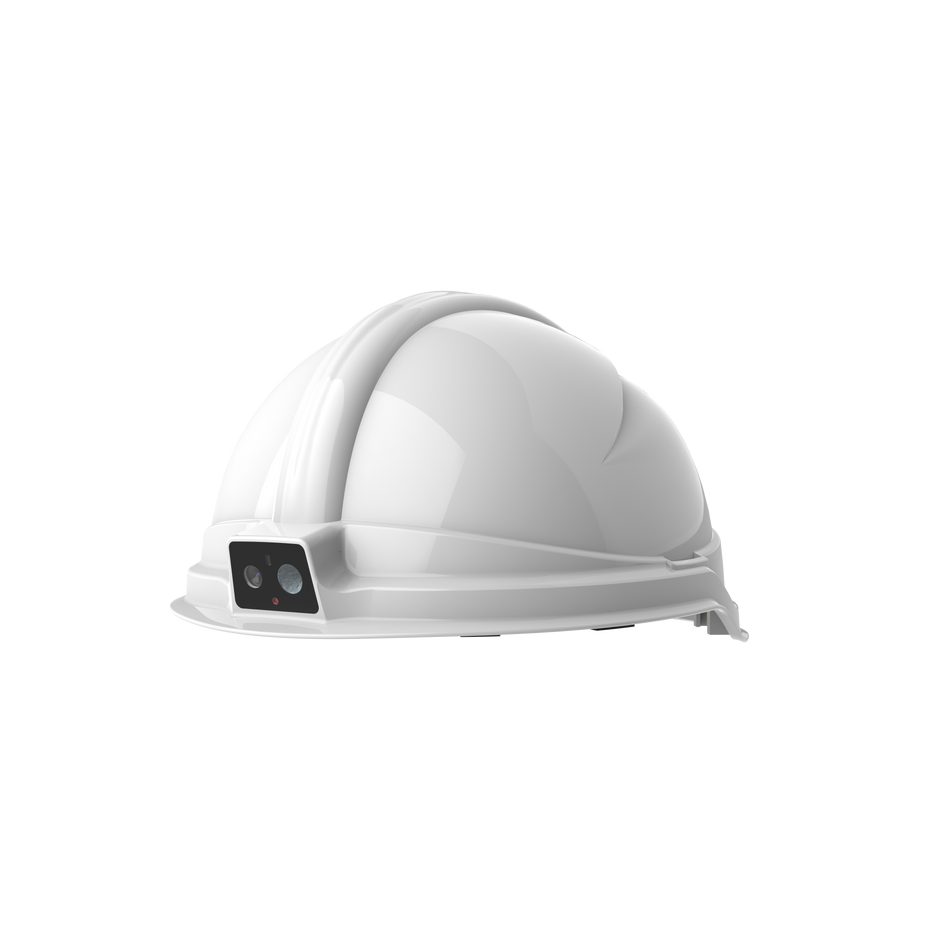

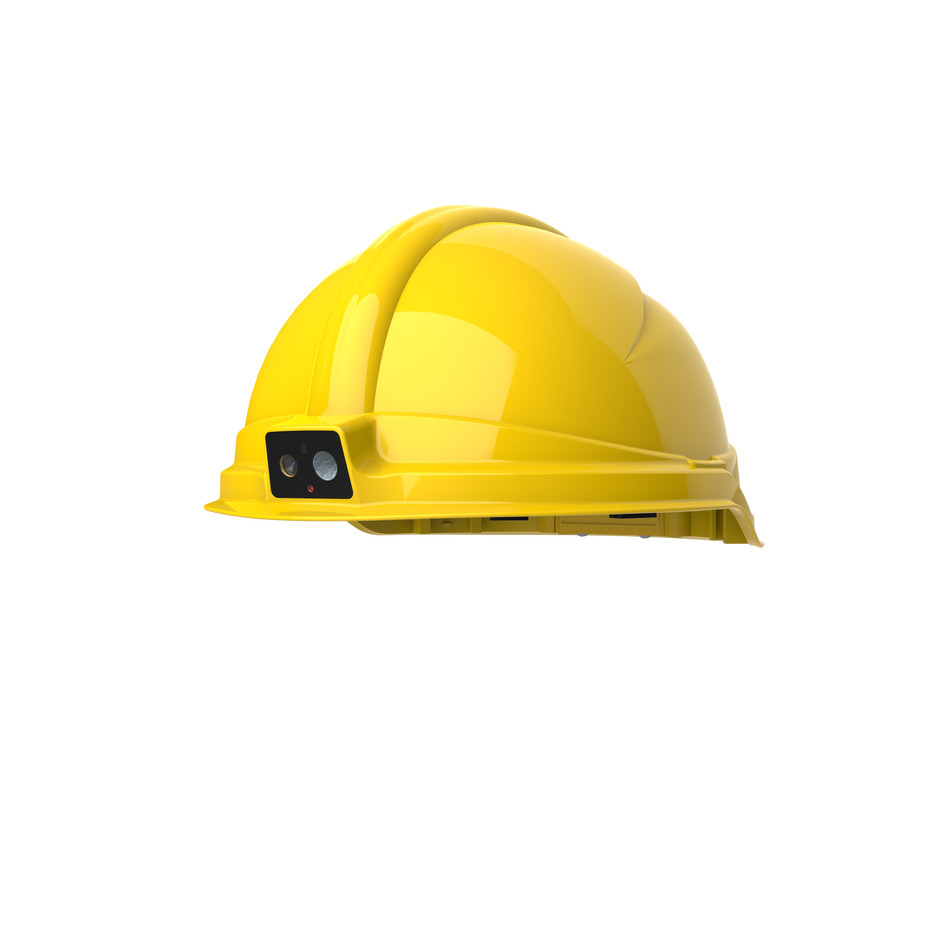

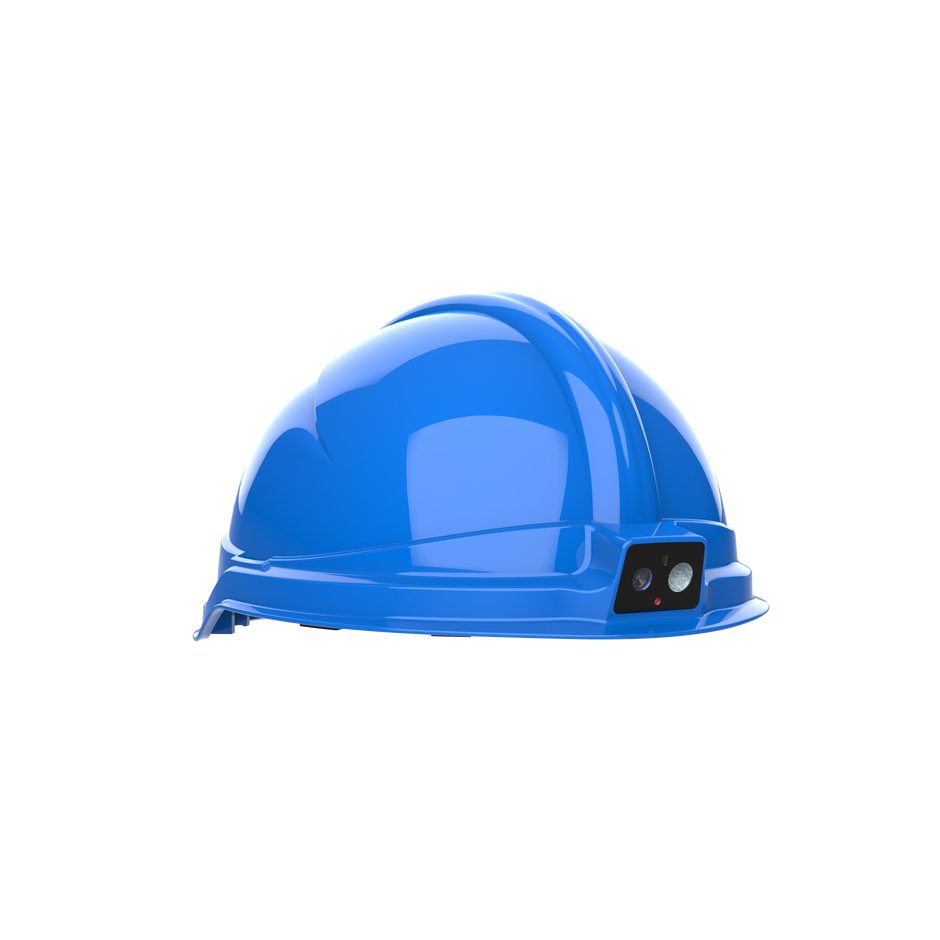

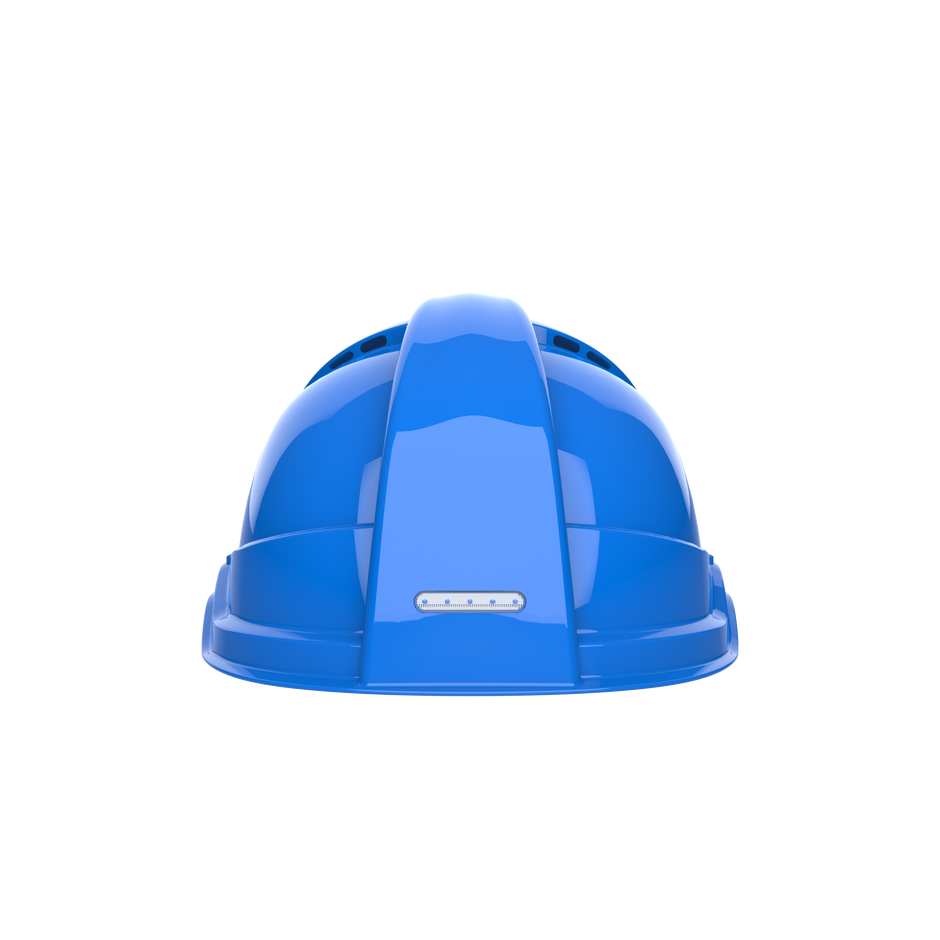

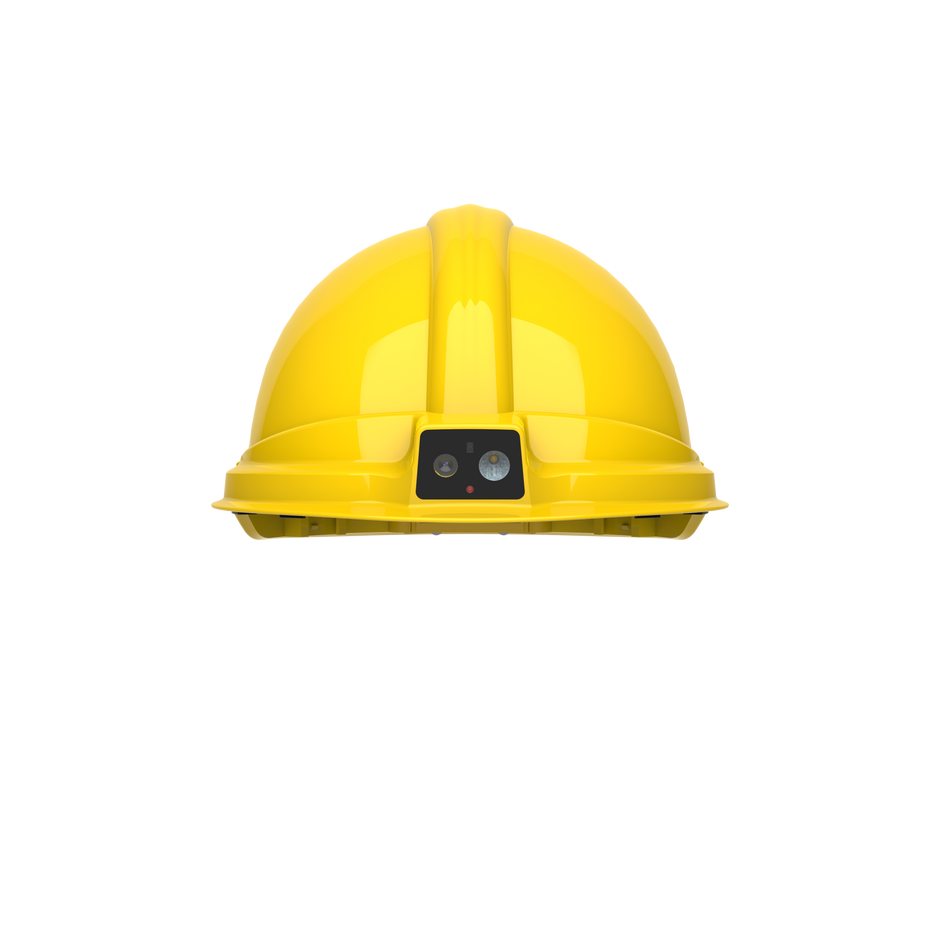

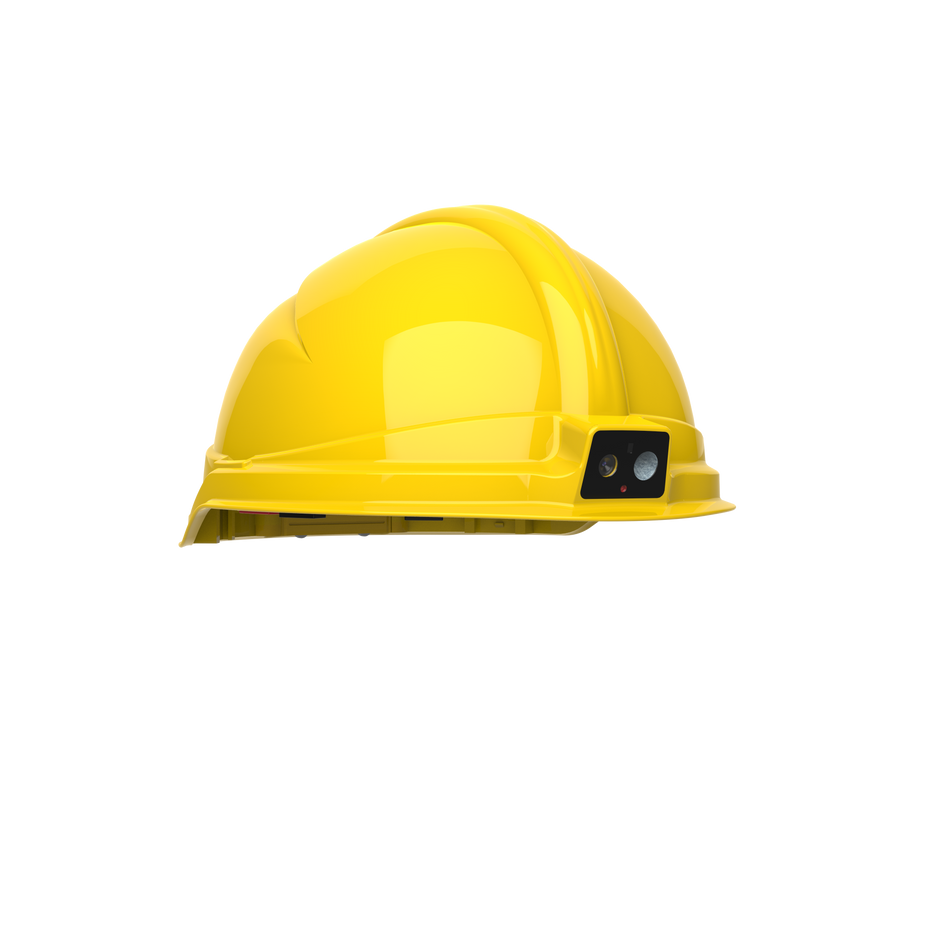

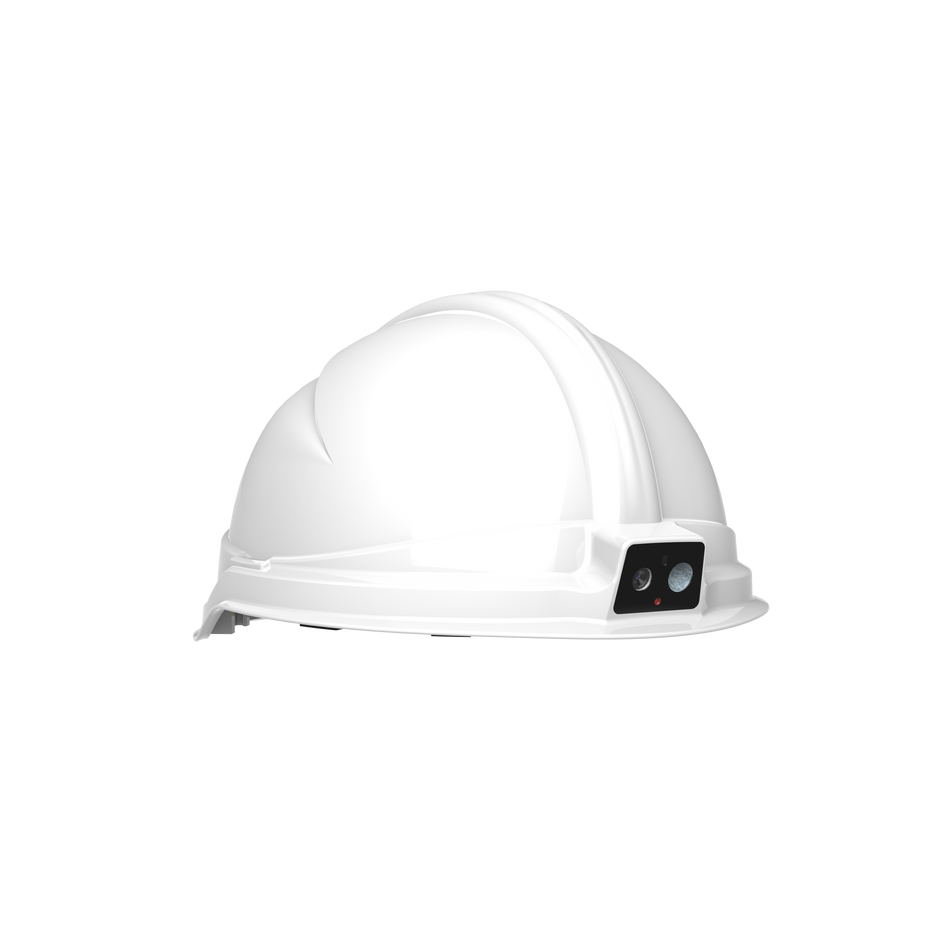

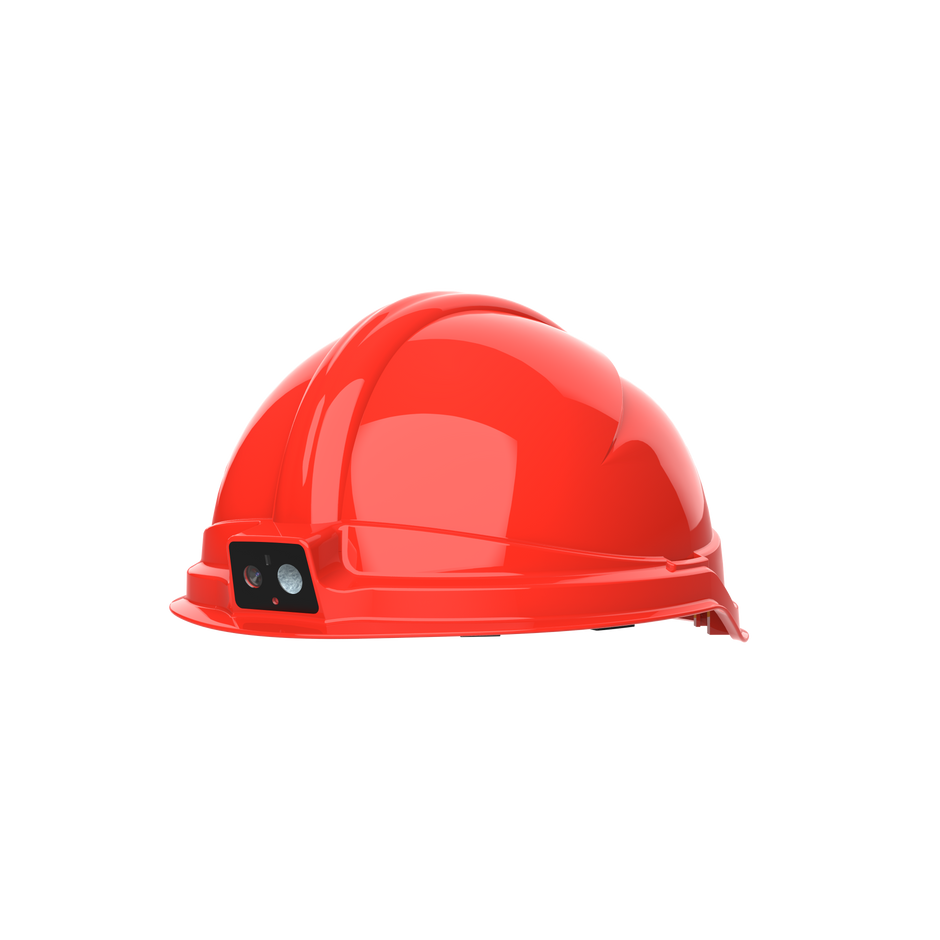

█ Appearance of the product

█ Product Parameter
|
System |
|
Photosensitive chip |
GC4653 4M 1/3 inch |
|
★ |
Main control chip |
ASR8601 RAM: 1GB ROM: 8GB |
|
|
|
Start-up time |
<20 s |
|
|
|
System |
Android 10 |
|
|
|
Language |
Chinese/English/supports 185 languages |
|
|
Camera lens |
|
Lens angle |
(D)FOV 90° (y=3.32mm), (H) FOV 83° (y=2.892mm), (V) FOV 53° (y=1.632mm) |
|
Video frequency |
|
Video input |
1x built-in digital HD lens |
|
|
External camera (need to be customized) |
It can support OTG UVC 720P external camera and infrared thermal imaging module |
|
|
|
Video resolution |
30fps @(720p/1080p) |
|
|
|
Video recording method |
Audio-visual audio synchronous recording |
|
|
|
Compression standard |
Video compression: H.264 / H.265; Audio support compression: G711A/G726/AAC |
|
|
|
Video recording |
1920x1080P/30, 1280x720P/30, 640x480P/30, MP4/MKV format |
|
|
★ |
Video format |
H.264/H.265 code |
|
|
|
Video encryption |
Support AES.SHA1,SHA2 |
|
|
|
Operation instructions |
PMULL |
|
|
|
Video code rate |
0-10 M bit/S can be adjusted manually |
|
|
|
|
Recording audio format |
Support separate recording, coding method: AAC file format: *. AAC |
|
Image processing and storage |
|
Resolution of the picture transmission |
1080P, 720P, 480P |
|
|
Photo resolution |
4M, 16M optional |
|
|
|
Take a snapshot |
Support capture in the video state (photo resolution is equivalent to the resolution of video) |
|
|
|
Data storage |
TF card (optional 16~512GB) |
|
|
|
Photo format |
File format: *. JPG |
|
|
Other functions and interfaces |
|
White light |
1W high-brightness concentrated lighting |
|
|
Laser lamp |
Assisted locking imaging center or laser annotation |
|
|
|
Flashing warning light |
Red and blue flash alternately |
|
|
|
Take off your hat and call the police |
Check whether the cap is worn |
|
|
|
G-sensor |
Call the police when you fall |
|
|
|
Near telegram alarm |
Wear the cap body close to the preset voltage, broadcast voice warning reminder, preset voltage: 220V, 10KV, 35KV, 110KV (function optional) |
|
|
|
Barometer |
Current altitude detection (function optional) |
|
|
|
TTS |
Voice announcement |
|
|
|
Wave your hand to test |
Close to the light, you can realize the switch lighting function. |
|
|
|
TF |
16G-512G |
|
|
|
SIM card |
4G full Netcom |
|
|
|
Communication interface |
Type-C, 1 USB2.0, can be used for system upgrade, PC communication, charging, etc. |
|
|
|
Button |
Switch, photo/video, lighting/raser/SOS, PTT |
|
|
|
Extended serial port |
External serial communication module (RTK, UWB, RFID, gas detection, etc.) |
|
|
Software information |
|
Text overlay |
Support overlay time, device number, law enforcement officer number, location information, speed information, and support Chinese overlay |
|
|
Automatic overlay |
Support automatic overwriting/no overwriting |
|
|
|
Image playback |
Support local video playback, retrieve video files through time, alarm and other means |
|
|
|
Replay speed |
Support fast/slow playback 1~128 times |
|
|
|
Pre-recording and extended recording |
Support up to 300 seconds of pre-recording + 300-second extended recording |
|
|
★ |
Video pre-recording time |
Support pre-recording 10-15S |
|
|
|
Video recording function |
Set: off/5 seconds/30 seconds/1 minute/5 minutes |
|
|
★ |
Distortion correction (software) |
Support distortion correction distortion images (with software distortion correction by default). If hardware correction is required, you need to choose a special distortion-free lens. |
|
|
Distortion correction (hardware) optional |
|||
|
|
Security mode |
The security mode is limited to basic operations such as video recording, photography, recording, etc., and requires a password to enter the setting interface and playback interface. |
|
|
|
Daily record |
Record the switch, record the on and off, power and other information |
|
|
|
Digital zoom |
Hold out |
|
|
|
Key video tags |
During the shooting process, the law enforcement recorder marks the video file by pressing the corresponding button; |
|
|
|
Take photos continuously |
Continuous shooting 2/3/5/10/15/20 photos |
|
|
|
Timed/time-lapsed photos |
Support 5/10 seconds |
|
|
|
One-click shortcut function |
Start the video recording with one click, |
|
|
|
Mobile detection |
Automatic recording and stop recording according to scene changes and stillness |
|
|
|
Voice reminder |
Support operation voice prompts |
|
|
|
Secret shooting mode |
Support no display of light number and no sound reminder |
|
|
Supporting software |
|
PC playback analysis |
Prowd back video files on the PC and analyze the data information in the file at the same time. |
|
|
CMSV6 platform management software |
Support real-time preview/real-time positioning/track playback/intercom/monitoring/remote command issuance, etc. |
|
|
Software upgrade |
|
Software maintenance |
This machine supports upgrading through USB interface or remote upgrade. |
|
|
|
Data security management |
The law enforcement recorder has different permissions for management. The primary permission can only view and play back law enforcement videos, photos and recordings, and cannotDelete and modify the sensitive settings of the machine. Only through password verification can the sensitive settings of the machine be made, and can be copied, modified or deleted after connecting to the computer. |
|
|
|
On-board function |
Support on-board verification, and realize automatic video forensics when the car is turned on, and automatically shut down after stopping and turning off the engine. |
|
|
|
Collection station |
Support collection station and background management 1. Operation log; 2. Data acquisition and classification |
|
Intercom function |
|
Cluster intercom |
Support the cluster intercom function between terminal devices (this function requires the device to support 4G) |
|
Platform intercom |
Support the intercom function of the management platform and the terminal device (this function requires the device to support 4G) |
||
|
Real-time status |
|
View the screen in real time |
(This function requires the device to support 4G) |
|
Check the location in real time |
(This function requires the device to support 4G) |
||
|
|
|
Frequency band Support to customize other frequency bands |
LTE-FDD: B1/B3/B7/B8/B20 or B5 |
|
LTE-TDD: B38/B39/B40/B4N |
|||
|
|
WIFI function |
WIFI AP MODE SUPPORTS 802.11a/b/g/n;2.4GH |
|
|
WIFI STA mode supports 802.11a/b/g/n;2.4GH |
|||
|
|
Beidou positioning function |
Single Beidou |
|
|
|
Blue tooth |
BT5.0 (BR/EDR + BLE) supports Bluetooth remote control, Bluetooth voice, Bluetooth label positioning, etc. |
|
|
Working environment |
|
Temperature |
-30--65℃ |
|
|
Moisture content |
40% to 80% |
|
|
Other |
|
Time |
Support network NTP, Beidou synchronous time correction, built-in RTC clock, network off after one correction, LAN cannot access the NTP server, time saving for a week |
|
|
Restore factory settings |
Factory settings can be restored |
|
|
|
Pilot lamp |
Charging, power-on, video recording |
|
|
|
Working current (voltage 4V) |
720P/30 frames of video: 350MA;1080P/30 frames video recording: 400MA 720P/30 frames Video + Network transmission + 4G: 450MA;1080P/30 frames of video + network transmission + 4G: 500MA |
|
|
|
Battery capacity |
To be determined |
|
|
|
Battery charging method |
5V charging, device USB charging current 1A, remove the separate charging current 600MA |
|
|
|
Storage occupation |
|
|
|
★ |
Protection level |
IP68 (mass production batch) |
|
|
|
Anti-fall level |
It can withstand a free fall of 2 meters. |
|
|
|
Measurement |
|
|
|
|
Weight |
|
